Analyser, clinical chemistry

General Description

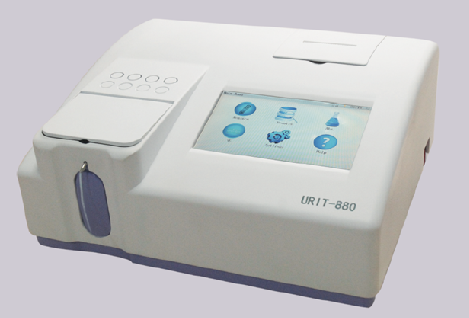

Analyser, clinical chemistry

Product Description
Batch process determination of routine clinical chemistry parameters
Platform: Bench-top, open, automatic system
Throughput 60 to 100 tests per hour
Sample type: Serum, plasma, urine
Parameters: Routine chemistry analytes (substrates, electrolytes, enzymes, lipids, immunoturbidimetric)
Method: end point, differential, fixed time, kinetic, immunoturbidimetric, multi standard
Pre-programmed and user programmable routines and profiles
Data management system built in for analysis and reporting, with storage of at least 100 patient data, including quality control and calibrators.
Results reportable via external printer.
Printed test results show sample ID, date and time
Quality control flags abnormal results, auto-calibration, auto-sampling, auto-dilution
Connects to external PC via USB
Casing is of corrosion-proof material
Power requirements: 220V/50Hz, with voltage surge protection
The equipment tolerates harsh environment, such as high humidity, operating temperature 15C to 40C, some fungi and spikes

Supplied with
1 x set of standard accessories, consumables and parts required to operate the equipment:
1x sample tray, 2x reagent trays, 40x reagent bottles with caps, 5x reagent bottles with caps, 50x reaction well segments, 500x sample cups, 20x tubes 2.5ml, 2x waste and wash bottles, 2x fuses, 1x power cable, 1x halogen lamp 12V 20W, 1x serial cable RS232, 1x peristaltic tube with 2 o-rings, 1x wash station, 1x case, 2x cleaning needle kits, 1x tube for external tank, 1x concentrated cleaning solution
User manua in
English; in French and Spanish upon request

Required, but not supplied
Installation and training
Reagents kits
UPS to ensure uninterrupted finalisation of on-going testing
PC, printer

Instructions for use
Used for bio-chemical analysis for diagnosis
Used in hospital laboratories and reference centres
Manufacturers recommended waste disposal

Packaging and Labelling
Primary packaging:
Unit presentation: 1(one) Analyser, clinical chemistry
Weight - Volume
Estimated weight: 85.00kg
Estimated volume: 0.336m3
