30 Day log_Berlinger Fridge-tag 2

General description

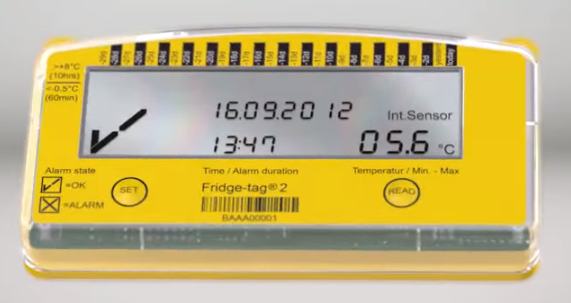

Berlinger Fridge-tag 2 is an electronic refrigerator temperature logger, with factory-programmed alarms and visual display for monitoring storage conditions in vaccine refrigerators over a 30 day period. The device shows the actual temperature, all alarm violations over the previous 30 days (on a rolling basis), the daily minimum and maximum temperature of the last 30 days, and the time duration of any violation.

WHO PQS number: E006/020
Specification reference: E006/TR06.3
Product verification protocol: E006/TR06.VP.3

Technical specifications:
Operating Temperature: -20°C to +55°C
Alarm: Visual, 30-day overview as a display OK / ALARM display (for 30 previous days)
Display medium: LCD
User interface: LCD
Minimum logging interval: 1 Minute
Accuracy: ±0.5°C or better within the range -20°C to +20°C
Battery type: Non-replaceable Lithium coin cell battery
Battery shelf life: 42 months (from manufacturing date)
Activated life: 42 months (from manufacturing date)
IP rating: IP64

Packaging and labelling:
Cardboard box: 1 Box = 50 units
Volume per box: 0.017 m³
Weight per box: 8 Kg
Unit Weight: 0.112 Kg
Unit Dimensions: 12.8 x 7.5 x 1.9 cm

Packaging when palletized:
Number of cartons per pallet: 32
Number of units per pallet: 1600
Dimensions of packed pallet (LxWxH): 120 x 80 x 93 cm
Net weight per packed pallet (Kgs): 256
Net volume per packed pallet (CBM): 0.542 m3

Warranty:
The product is to be covered by a two year replacement warranty from the date of manufacture in the event of any component failure not caused by mechanical damage.
