Mains Frz. BMed TFW 3000AC E003/071

Technical Guidance: Contact UNICEF Supply Division, HTC, Cold Chain Unit for technical questions. CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >

General Description:

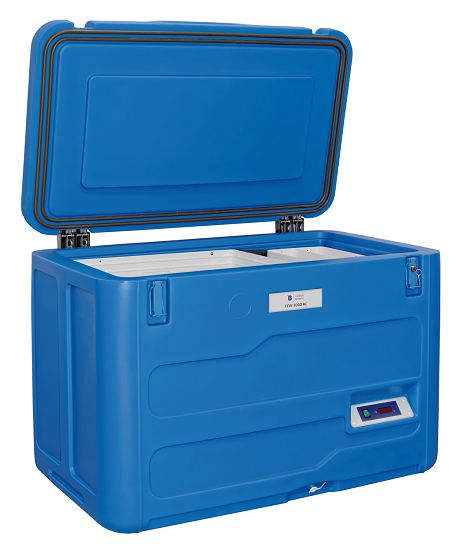

Mains Powered Waterpack Freezer.
Model: B Medical TFW 3000 AC
PQS ref. E003/071

Technical specifications:
Water-pack freezing capacity per 24 hours: 32 kg
Water-pack storage capacity: 162X0.6L
Power requirement: 220-240V 50/60Hz or 100-127V 60Hz.
Refrigerant type: R600a
Ambient operating temperature: Max. +43°C

Supplied with:
1.Temperature Monitoring Device: External cabinet mounted electronic thermometer with an integrated LED display.
2.Voltage regulator: Stand-alone, Sollatek, model SVS04-22 for 220-240V 50/60Hz.
3.EU type Schuko plug that fits into the voltage stabilizer with 1,5 m power lead.
Upon request Extended type Stand-alone, Sollatek, Model SVS04E-22, 230V 50/60Hz nominal output, 100-290V input voltage regulation range.
Upon request Stand-alone, Sollatek, Model SVS08-11, 120V 50/60Hz nominal output, 80-160V input voltage regulation range.
4.The voltage stabilizer is delivered with a set adapter so that it can be used in all type of sockets.
5.Lid with lock, plus 2 keys and 6 baskets.

Manuals:
User, Installation and Technician’s manual supplied in English, French and Spanish as a standard.

Shipping Information:
Packaging and labelling
Estimated shipping weight: 126 kg
Estimated shipping volume: 1.07 m³

Warranty:
The product is covered by a two year replacement warranty in the event of any component failure arising from defective design, materials or workmanship.

NOTES:
1.UNICEF CO or partners should notify the voltage & frequency to ensure correct choice of freezer and voltage regulator.
2.Manuals in other UN languages upon request.
3.A label, displaying vaccine storage advice & user instructions with pictures is permanently mounted on cabinet.
4.Maintenance tool kits are available on request. (For contents, see supply web catalogue.)
5.One set of spare parts is recommended but not compulsory for every 10 units of ILRs.
6.Further information for comparable products, can be obtained from CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >.
