Mains Frz. Haier HBD-116 E003/002

Technical Guidance:
Contact with UNICEF Supply Division, HTC, Cold Chain Unit for technical questions. CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >

General Description:

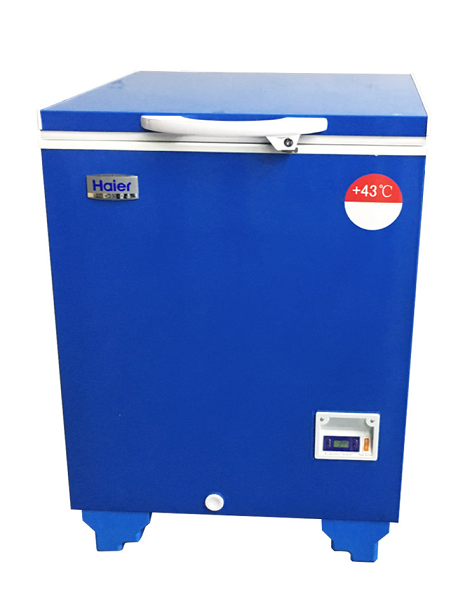

Mains powered, Vaccine/Waterpack Freezer.
Model: Haier HBD-116
PQS ref. E003/002

Technical specifications:
Water-pack freezing capacity per 24 hours: 12 kg
Water-pack storage capacity: 136 x 0.6 L
Power requirement: 220-240V 50/60Hz
Refrigerant type: R134a
Ambient operating temperature: Min. +5°C, Max. +43°C

Supplied with:
1.Temperature Monitoring Device: Externally readable cabinet-mounted electronic thermometer conforming to PQS specification E006/TH06.
2.Voltage regulator: A standalone voltage stabilizer (HVS-1000) compliant with E007/VS01.3 for 220-240 V 50/60 Hz input voltage.
Upon request extended type Stand-alone, Sollatek, Model SVS04E-22, 230V 50/60Hz nominal output, 100-290V input voltage regulation range.
3.Schuko plug as a standard and 1.5 meters power lead.
4.Lid with lock, plus 2 keys and 2 baskets.

Manuals:
User, installation, and maintenance documents that address all the five aspects as outlined in the applicable WHO/PQS specification will be supplied in English as a standard.

Shipping Information:
Packaging and labelling;
Estimated shipping weight: 55 kg
Estimated shipping volume: 0.50 m³

Warranty:
The product is covered by a two year replacement warranty in the event of any component failure arising from defective design, materials or workmanship.

NOTES:
UNICEF CO or partners should notify the voltage & frequency to ensure correct choice of freezer and voltage regulator.
A label, displaying vaccine storage advice & user instructions with pictures is permanently mounted on cabinet. Label is in the UN languages (Arabic, English, French, Mandarin Chinese, Russian or Spanish, or other language be available on demand).
Maintenance tool kits are available on request. (For contents, see supply web catalogue.)
One set of spare parts is recommended but not compulsory for every 10 units of ILRs.
Further information for comparable products, can be obtained from CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >.
