Mains Frz. Vestfrost MF214 E003/025

Technical Guidance:
Contact UNICEF Supply Division, HTC, Cold Chain Unit for technical questions. CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >

General Description:

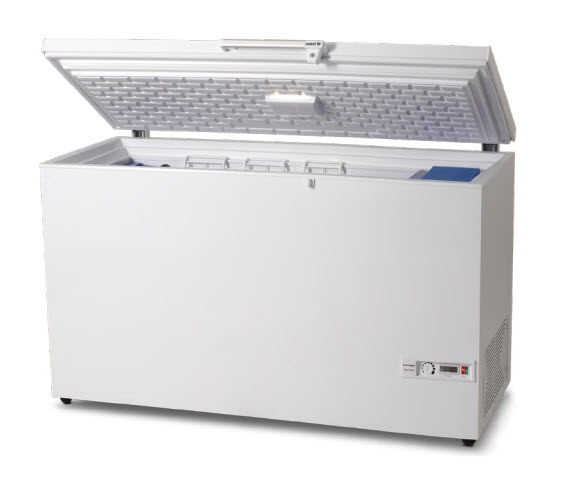

Mains Powered Vaccine/Waterpack Freezer
Model: Vestfrost MF214
PQS ref. E003/025

Technical specifications:
Water-pack freezing capacity per 24 hours: 7.2 kg
Water-pack storage capacity: 160 x 0.6 L
Power requirement: 220-240V 50/60Hz or 100-127V 50/60Hz.
Refrigerant type: R600a
Ambient operating temperature: Max. +43°C

Supplied with:
1.Temperature Monitoring Device: Electronic thermometer powered by a photovoltaic cell with Full-View LCD, conforming to PQS specification E006/TH06.
2.Voltage regulator: Stand-alone, Sollatek, model SVS04-22 for 220-240 volt 50/60 Hz or SVS04-11 for 100-127 volt 50/60Hz input voltage.
Upon request extended type Stand-alone voltage regulator, Sollatek, Model SVS04E-22, 230V 50/60Hz nominal output, 100-290V input voltage regulation range. Or Stand-alone, Bluebird Power Controls, Model BB 211, 230V 50/60Hz nominal output, 110-278V input voltage regulation range.
Stand-alone, Sollatek, Model SVS08-11, 120V 50/60Hz nominal output, 80-160V input voltage regulation range. Or Stand-alone, Bluebird Power Controls, Model BB 186, 120V 50/60Hz nominal output, 82-159V input voltage regulation range.
3.Appliance as standard fitted with sealed-on Schuko plug, power lead 1.5m
4.Lid with lock, plus 2 keys and 2 baskets.

Manuals:
User, Installation and Technician’s manual outlined in PQS Specifications E003/FZ01.2 will be supplied

Shipping Information:
Packaging and labelling
Estimated shipping weight: 88 kg
Estimated shipping volume: 0.90 m³

Warranty:
The product is covered by a two year replacement warranty in the event of any component failure arising from defective design, materials or workmanship.

NOTES:
UNICEF CO or partners should notify the voltage & frequency to ensure correct choice of freezer and voltage regulator.
A label, displaying vaccine storage advice & user instructions with pictures is permanently mounted on cabinet. Label is in the UN languages (Arabic, English, French, Mandarin Chinese, Russian or Spanish, or other language be available on demand).
Maintenance tool kits are available on request. (For contents, see supply web catalogue.)
One set of spare parts is recommended but not compulsory for every 10 units of ILRs.
Further information for comparable products, can be obtained from CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >.
