Mains Ref. BMed TCW3000AC E003/017

Technical Guidance:
Contact UNICEF Supply Division, HTC, Cold Chain Unit for technical questions. CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >

General Description:

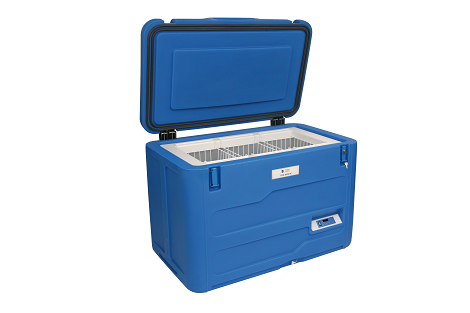

Mains powered Vaccine refrigerator
Model: B Medical TCW 3000AC
PQS ref. E003/017

Technical specifications:
Net vaccine storage volume: 150L
Power requirement: 220-240V 50/60Hz or 100-127V 60Hz.
Refrigerant type: R134a
Ambient operating temperature: Min. +15°C, Max. +43°C
Freeze Protection: Grade A
Vaccine storage volume category: ≥120L

Supplied with:
1.Temperature Monitoring Device: 30 day electronic refrigerator temperature logger: Berlinger Fridge-Tag 2, E006/020 attached to internal refrigerator basket
OR
Upon request: Either Berlinger Fridge-Tag 2E, E006/040 with an internal sensor attached to internal refrigerator basket or Fridge-Tag 2E with external sensor, E006/040 shall be supplied.

2.Remote temperature monitoring device: Supplied with an integrated Remote Temperature Monitoring Device (RTMD) complying with WHO/PQS/E006/TR03.2, including the following:
2 years subscription period;
Online web portal access (in English) for data analysis, reporting and system setup for the duration of the subscription;
Data transfer from hardware to servers via mobile networks and SMS alerts for the duration of the subscription period. Provided via a global/international SIM card fully operable with the mobile networks, frequency bands and APN settings used in the receiving country.

Data ownership -RTMD
Subject to the right for B Medical Systems S.à r.l. to have access to the data to provide its services to the Customer, the Customer having purchased the medical equipment from B Medical Systems S.à.r.l. shall in all circumstances have full ownership and privacy of data.

Subject to the right for B Medical Systems S.à r.l. to have access to the data to provide its services to the Customer and payment of any fees (if applicable) by the Customer to receive such services, the Customer having purchased the medical equipment from B Medical Systems S.à.r.l. shall have full control over the use, storage, transmission, internal processing and terms of access and use of the data by third parties throughout the full lifespan of the data.

To the exception of IT service providers working on the RTM system on behalf of B Medical Systems S.à r.l., no data, whether anonymized or not, shall be shared with any third parties without explicit and informed consent by the Customer.

All data (during storage, transmission and internal processing), access to the web portal profiles and access to servers should be protected using state-of-the-art security measures.

3.Voltage regulator: Stand-alone, Sollatek, model SVS04-22 for 220-240V 50/60Hz.
Upon request Extended type Stand-alone, Sollatek, Model SVS04E-22, 230V 50/60Hz nominal output, 100-290V input voltage regulation range.
Upon request Stand-alone, Sollatek, Model SVS08-11, 120V 50/60Hz nominal output, 80-160V input voltage regulation range.

4.EU type Schuko plug that fits into the voltage stabilizer with 1,5 m power lead.

5.The voltage stabilizer is delivered with a set of adapters so that it can be used in all type of sockets.

6.Lid with lock, plus 2 keys and 5 baskets.

Manuals:
User, Installation and Technician’s manual supplied in English, French and Spanish as a standard.

Shipping Information:
Packaging and labelling
Estimated shipping weight: 135 kg
Estimated shipping volume: 1.07 m³

Warranty:
The product is covered by a two year replacement warranty in the event of any component failure arising from defective design, materials or workmanship.

NOTES:
UNICEF CO or partners should notify the voltage & frequency to ensure correct choice of freezer and voltage regulator.
A label, displaying vaccine storage advice & user instructions with pictures is permanently mounted on cabinet. Label is in the UN languages (Arabic, English, French, Mandarin Chinese, Russian or Spanish, or other language be available on demand).
Maintenance tool kits are available on request. (For contents, see supply web catalogue.)
One set of spare parts is recommended but not compulsory for every 10 units of ILRs.
Further information for comparable products, can be obtained from CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >.
