Mains Ref SureChill GVR50AC E003/046

Technical Guidance:
Contact with UNICEF Supply Division, HTC, Cold Chain Unit for technical questions. CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >

General Description:

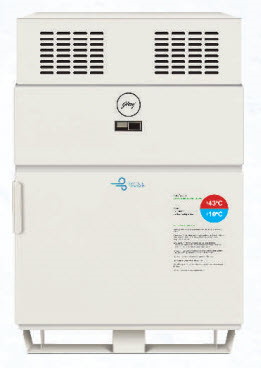

Mains Powered, Ice-lined Refrigerator for Storage of Vaccines
Model: SureChill GVR50AC
PQS ref. E003/046

Technical specifications:
Net vaccine storage volume: 46.5L
Power requirement: 220-240V 50/60Hz operating system, voltage regulator extends voltage range of 110-280V, AC supply frequency range 50 to 60Hz (+/- 3Hz)
Refrigerant type: R600a
Ambient operating temperature: Min. +10°C, Max. +43°C
Freeze Protection: Grade A
Vaccine storage volume category: ≥30 - <60L

Supplied with:
1.Temperature Monitoring Device - 30-day electronic refrigerator temperature logger:
Berlinger Fridge-Tag 2, E006/020 attached to internal refrigerator basket
OR
Upon request: Either Berlinger Fridge-Tag 2E, E006/040 with an internal sensor attached to internal refrigerator basket or Fridge-Tag 2E with external sensor, E006/040 shall be supplied.
2.Voltage regulator: Integrated Godrej stabilizer RCM 977 493 57 compliance with PQS E007/VS01.3, with an extended input operating range of 110V-280V. AC supply frequency range 50 to 60Hz (+/- 3Hz)
3.3 meters power lead and Schuko socket as standard
4.Lid with lock, plus 2 keys and 3 wire shelves.

Manuals:
WHO/PQS compliant User, installation, and maintenance documents will be provided

Shipping Information:
Packaging and labelling;
Estimated shipping weight: 125 kg
Estimated shipping volume: 0.963 m³

Warranty:
The product is covered by a two year replacement warranty in the event of any component failure arising from defective design, materials or workmanship.

NOTES:
UNICEF CO or partners should notify the voltage & frequency to ensure correct choice of freezer and voltage regulator.
A label, displaying vaccine storage advice & user instructions with pictures is permanently mounted on cabinet. Label is in the UN languages (Arabic, English, French, Mandarin Chinese, Russian or Spanish, or other language be available on demand).
Maintenance tool kits are available on request. (For contents, see supply web catalogue.)
One set of spare parts is recommended but not compulsory for every 10 units of ILRs.
Further information for comparable products, can be obtained from CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >.
