Mains Ref SureChill ZLF100AC E003/036

Technical Guidance:
Contact UNICEF Supply Division, HTC, Cold Chain Unit for technical questions. CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >

General Description:

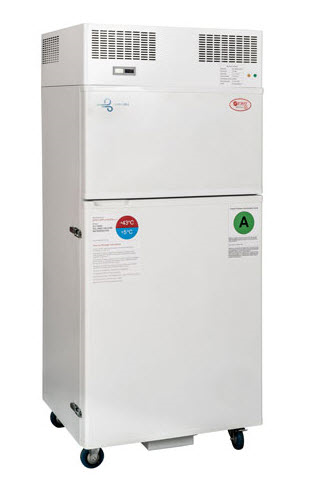

Mains powered, Ice-lined refrigerator for Storage of Vaccines.
Model: SureChill ZLF100AC
PQS ref. E003/036

Technical specifications:
Net vaccine storage volume: 99 L
Power requirement: 220-240V 50/60Hz or 100-127V 50/60Hz.
Refrigerant type: R134a
Ambient operating temperature: Min. +10°C, Max. +43°C
Freeze Protection: Grade A
Vaccine storage volume category: ≥90 - <120L

Supplied with:
1.Temperature Monitoring Device-30 day electronic refrigerator temperature logger:
VaxTag LogTag 30-day logger E006/013 attached to internal refrigerator basket
OR
Upon request: Either Berlinger Fridge-Tag 2E, E006/040 with an internal sensor attached to internal refrigerator basket or Fridge-Tag 2E with external sensor, E006/040 shall be supplied.
2.Voltage regulator: Integrated Sollatek ASP voltage regulator included, for 220-240V 50/60Hz or 100-127V 50/60Hz input voltage.
Upon request extended type Stand-alone Voltage regulator, Sollatek, Model SVS04E-22, 230V 50/60Hz nominal output, 100-290V input voltage regulation range.
Voltage regulator: Stand-alone, Sollatek, Model SVS08-11, 120V 50/60Hz nominal output, 80-160V input voltage regulation range.
3.With 1.5 meters power lead and Schuko socket.
4.Lid with lock, plus 2 keys and 3 wire shelves.

Manuals:
User, Installation and Technician’s manual, compliant to PQS is supplied in English and French as a standard.

Shipping Information:
Packaging and labelling;
Estimated shipping weight: 140 kg
Estimated shipping volume: 1.299 m³

Warranty:
The product is covered by a two year replacement warranty in the event of any component failure arising from defective design, materials or workmanship.

NOTES:
UNICEF CO or partners should notify the voltage & frequency to ensure correct choice of freezer and voltage regulator.
A label, displaying vaccine storage advice & user instructions with pictures is permanently mounted on cabinet. Label is in the UN languages (Arabic, English, French, Mandarin Chinese, Russian or Spanish, or other language be available on demand).
Maintenance tool kits are available on request. (For contents, see supply web catalogue.)
One set of spare parts is recommended but not compulsory for every 10 units of ILRs.
Further information for comparable products, can be obtained from CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >.
