Mains Ref. Surechill ZLF80AC E003-096

Technical Guidance:
Contact with UNICEF Supply Division, HTC, Cold Chain Unit for technical questions. CPHHQ-SD-Cold Chain Unit < sd.coldchain@unicef.org >

General Description:

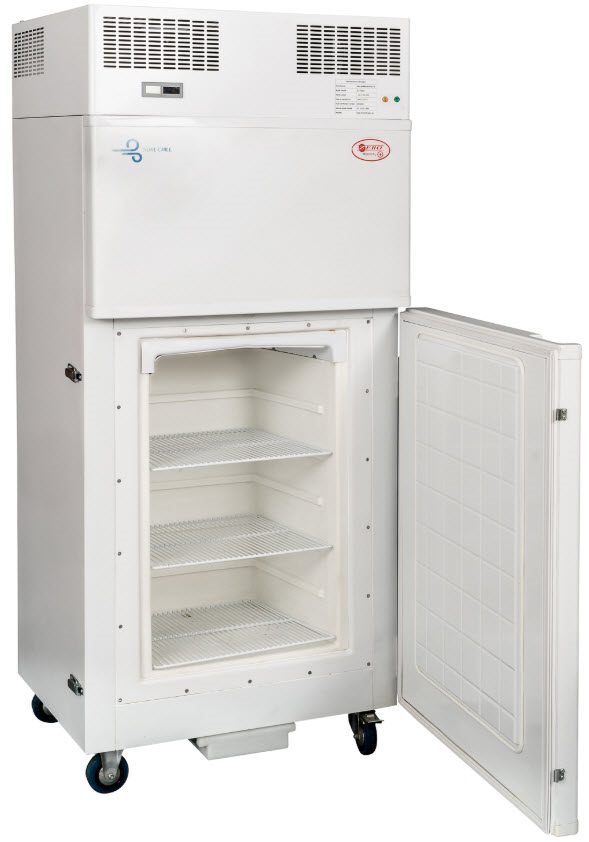

Mains powered, Ice-lined refrigerator for Storage of Vaccines.
Model: Surechill ZLF 80 AC
PQS ref. E003/096

Technical specifications:
Net vaccine storage volume: 77 litres
Power requirement: 220-240V 50/60Hz or 100-127V 50/60Hz.
Refrigerant type: R134a
Ambient operating temperature: Min. +5°C, Max. +43°C
Freeze Protection: Grade A

Supplied with:
1.Temperature Monitoring Device-30 day electronic refrigerator temperature logger:
VaxTag LogTag 30-day logger E006/013 attached to internal refrigerator basket
OR,
Upon request: Either Berlinger Fridge-Tag 2E, E006/040 with an internal sensor attached to internal refrigerator basket or Fridge-Tag 2E with external sensor, E006/040 shall be supplied.
2.Voltage regulator: Integrated Sollatek ASP voltage regulator included, for 220-240V 50/60Hz or 100-127V 50/60Hz input voltage.
Upon request extended type Stand-alone Voltage regulator, Sollatek, Model SVS04E-22, 230V 50/60Hz nominal output, 100-290V input voltage regulation range.
Stand-alone, Sollatek, Model SVS08-11, 120V 50/60Hz nominal output, 80-160V input voltage regulation range.
3.With 1.5 meters power lead and Schuko socket.
4.Lid with lock, plus 2 keys and 3 wire shelves.

Manuals:
User, Installation and Technician’s manual, compliant to PQS is supplied in English and French as a standard.

Shipping Information:
Packaging and labelling;
Plywood packing + EPS straps.
Estimated shipping weight: 142 kg
Estimated shipping volume: 1.132 m³

Warranty:
The product is covered by a two-year replacement warranty in the event of any component failure arising from defective design, materials or workmanship.

NOTES:
UNICEF CO or partners should notify the voltage & frequency to ensure correct choice of refrigerator and voltage Regulator.
A label, displaying vaccine storage advice & user instructions with pictures is permanently mounted on cabinet. Label provided near the top of door complying with PQS E003/RF03.3.
Maintenance tool kits are available on request. (For contents, see supply web catalogue.)
One set of spare parts is recommended but not compulsory for every 10 units of ILRs.
Further information for comparable products, can be obtained from CPHHQ-SD-Cold Chain Unit < sd.coldchain@unicef.org >.
