Mains Frz. BMed TCW3000AC E003/017

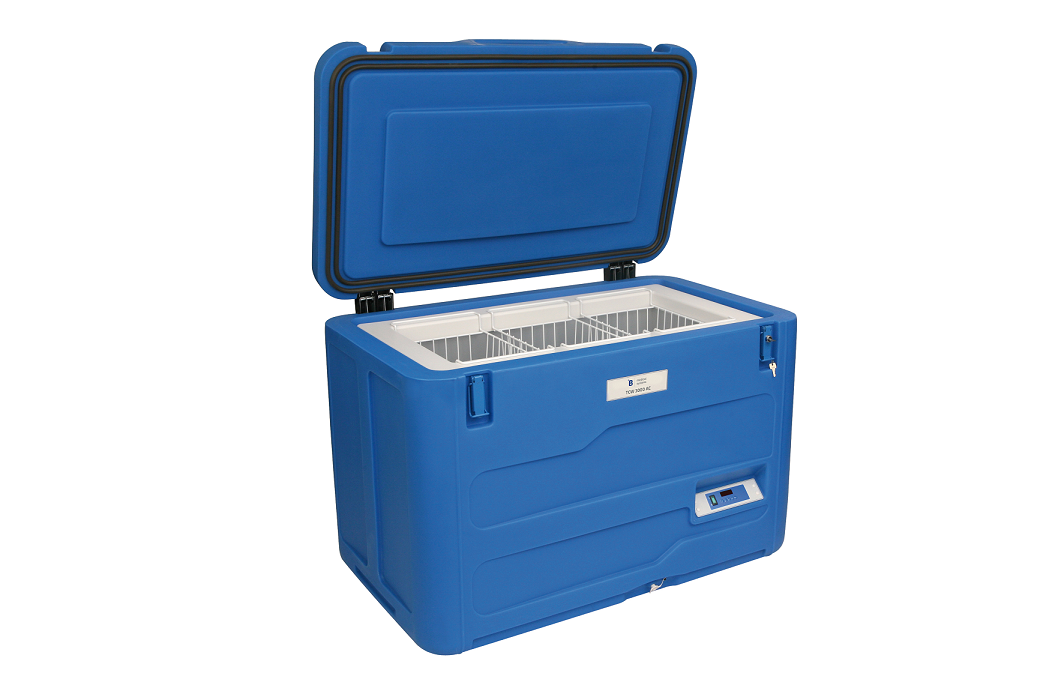

Mains Powered vaccine/water pack freezer
Equipment model: TCW 3000 AC
PQS code: E003/017
Manufactured by: B Medical Systems in Luxembourg
Volume category: >150 L
Gros volume-Freezer: 204 L

Technical specifications
PQS Prequalified Mains Powered Vaccine/Water-Pack Freezer for storage of vaccines at -15˚C to -25˚C and freezing of water packs.
Equipment operating voltage and frequency:
220-240 Volt, 50Hz/60Hz, or 100-127 Volt 50Hz/60Hz, 1ph.
Operating temperature: Max rated ambient temperature: +43°C
Refrigerant: R134a, 142 grams
Energy consumption, stable running (kWh/24 hours): 3.83

To be supplied with:
Voltage stabilizer (Standalone):
Voltage stabilizer for 220-240V 50/60 Hz nominal input/output:
(Option 1, Standard): Extended type, Sollatek, SVS04E-22, 1kVA, E007/004 with input voltage regulation range 100V-290V/50/60Hz
Voltage stabilizer for 100-127V 50/60 Hz nominal input/output:
(Option 2, Standard): Extended type, Sollatek, SVS08-11, 8A, 115V with input voltage regulation range 82V-160V/50/60Hz
PQS prequalified 30-day temperature logger - Standard
Remote Temperature Monitoring System RTMS – Standard
The door / lid fitted with a lock and two keys, 5 Baskets
Warranty: 3- year replacement warranty as specified in the LTA.

NOTES:
1.UNICEF CO or partners should notify the voltage & frequency to ensure correct choice of freezer and voltage regulator.
2.Provide the preferred power plug type compatible with the electricity socket standard in the country
3.One set of spare parts is recommended but not compulsory for every 10 units of mains powered appliances.
4.For Technical Guidance: Contact with UNICEF Supply Division, Immunization Technology Center, Cold Chain Unit for technical questions. CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >
