SDD Ref & Frz. BMed TCW2000SDD E003/035

Technical Guidance:
Contact UNICEF Supply Division, HTC, Cold Chain Unit for technical questions. CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >

General Description:

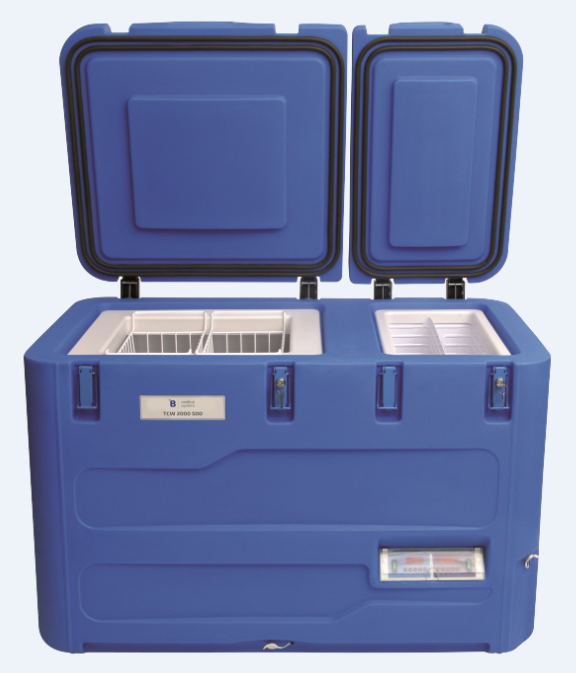

Solar Direct Drive combined Refrigerator & Freezer for Storage of Vaccine
Model: B Medical TCW2000SDD
PQS ref. E003/035

Technical specifications:
A complete stand-alone SDD combined refrigerator & freezer with all necessary components and fittings (Plug and Play).

Refrigerator cabinet:
Net vaccine storage volume: 99 litres
Water-pack freezing capacity per 24 hours: 2.4 kg.
Water-pack storage capacity: 14.4 kg.
Refrigerant type: R600a
Ambient operating temperature: Min. +5°C, Max. +32°C
Freeze Protection: Grade A

Solar Power System:
Shall match the refrigerator power consumption, climate, ambient temperatures and solar radiation reference source of 3.5KWh/m2/24 hours.
Country of origin for solar panels; China or Croatia.

Supplied with:
1.Temperature Monitoring Device: 30 day electronic refrigerator temperature logger:
Berlinger Fridge-Tag 2, E006/020 attached to internal refrigerator basket
OR
Upon request: Either Berlinger Fridge-Tag 2E, E006/040 with an internal sensor attached to internal refrigerator basket or Fridge-Tag 2E with external sensor, E006/040 shall be supplied.

2.Remote temperature monitoring device: Supplied with an integrated Remote Temperature Monitoring Device (RTMD) complying with WHO/PQS/E006/TR03.2, including the following:
2 years subscription period (may be extended to 10 years if the equipment is installed by B Medical or an authorized service provider);
Online web portal access (in English) for data analysis, reporting and system setup for the duration of the subscription;
Data transfer from hardware to servers via mobile networks and SMS alerts for the duration of the subscription period. Provided via a global/international SIM card fully operable with the mobile networks, frequency bands and APN settings used in the receiving country.

Data ownership -RTMD
Subject to the right for B Medical Systems S.à r.l. to have access to the data to provide its services to the Customer, the Customer having purchased the medical equipment from B Medical Systems S.à.r.l. shall in all circumstances have full ownership and privacy of data.

Subject to the right for B Medical Systems S.à r.l. to have access to the data to provide its services to the Customer and payment of any fees (if applicable) by the Customer to receive such services, the Customer having purchased the medical equipment from B Medical Systems S.à.r.l. shall have full control over the use, storage, transmission, internal processing and terms of access and use of the data by third parties throughout the full lifespan of the data.

To the exception of IT service providers working on the RTM system on behalf of B Medical Systems S.à r.l., no data, whether anonymized or not, shall be shared with any third parties without explicit and informed consent by the Customer.

All data (during storage, transmission and internal processing), access to the web portal profiles and access to servers should be protected using state-of-the-art security measures.

3.ON/OFF power switch, accessible to the user, is provided on the appliance that isolates refrigerator from the solar power system.

4.10 fuses of each type are included.

5.Lid with lock, plus 2 keys and 4 baskets.

6.Compass

Manuals:
User, Installation and Technician’s manual supplied in English, French and Spanish as a standard.

Shipping Information:
Packaging and labelling;
Refrigerator: wooden pallet + cardboard
Solar system: wooden box.
Estimated shipping weight: 377 kg (combined weight refrigerator & solar array)
Estimated shipping volume: 1.922 m³ (combined volume refrigerator & solar array)

Warranty:
1.The refrigerator/freezer is covered by a 2-year replacement warranty in the event of any component failure arising from defective design, materials or workmanship, (10 year warranty if the equipment is installed by B Medical or an authorized service provider)
2.Solar module power output: Warranty of 25 years to 80% of initial power rating.

NOTES:
1.In case of any import restrictions regarding country of manufacture, CO should contact SD and confirm solar panel, country of origin.
2.Manuals in other UN languages are available upon request.
3.A label, displaying vaccine storage advice & user instructions with pictures is permanently mounted on cabinet lid.
4.One set of spare parts is recommended but not compulsory for every 10 units of SDDs.
5.A Basic Installation Toolkit is available on request. (For contents of the toolkit, see supply web catalogue.)
6.Maintenance tool kits are available on request. (For contents of the toolkit, see supply web catalogue.)
7.Further information for comparable products, can be obtained from CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >.
