SDD Ref. Zero ZLF150DC E003/052

Technical Guidance:
Contact with UNICEF Supply Division, HTC, Cold Chain Unit for technical questions. CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >

General Description:

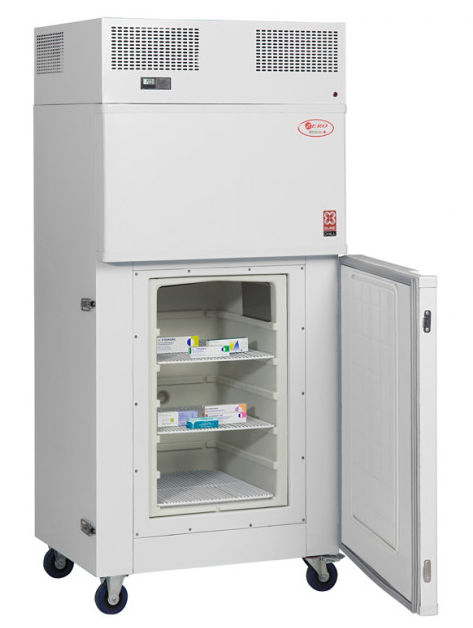

Solar Direct Drive (SDD) Refrigerator for Storage of Vaccine
Model: Zero ZLF150DC
PQS ref. E003/052

Technical specifications:
A complete stand-alone SDD refrigerator with all necessary components and fittings (Plug and Play).

Refrigerator cabinet:
Net vaccine storage volume: 128 liters
Refrigerant type: R134a
Ambient operating temperature: Min. +5°C, Max. +43°C
Freeze Protection: Grade A

Solar Power System:
Shall match the refrigerator power consumption, climate, ambient temperatures and solar radiation reference source of 3.5KWh/m2/24 hours.
Country of origin for solar panels; China.




Supplied with:
1.Temperature Monitoring Device-30 day electronic refrigerator temperature logger:
VaxTag LogTag 30-day logger E006/013 attached to internal refrigerator basket
OR
Upon request: Either Berlinger Fridge-Tag 2E, E006/040 with an internal sensor attached to internal refrigerator basket or Fridge-Tag 2E with external sensor, E006/040 shall be supplied.
2.ON/OFF power switch, accessible to the user, is provided on the appliance that isolates refrigerator from the solar power system.
3.10 fuses of each type are included.
4.Lid with lock, plus 2 keys and 3 wire shelves.

Manuals:
User, Installation and Technician’s manual supplied in English, French and Spanish as a standard.

Shipping Information:
Packaging and labelling;
Plywood packaging + EPS protection and strapping.
Estimated shipping weight: 210 kg (combined weight refrigerator & solar array)
Estimated shipping volume: 1.539 m³ (combined volume refrigerator & solar array)

Warranty:
1.The product is covered by a two year replacement warranty in the event of any component failure arising from defective design, materials or workmanship.
2.Solar module power output: Warranty of 25 years to 80% of initial power rating.

NOTES:
1.In case of any import restrictions regarding country of manufacture, CO should contact SD and confirm solar panel, country of origin.
2.A label, displaying vaccine storage advice & user instructions with pictures is permanently mounted on cabinet.
3.One set of spare parts is recommended but not compulsory for every 10 units of SDDs.
4.A Basic Installation Toolkit is available on request. (For contents of the toolkit, see supply web catalogue.)
5.Maintenance tool kits are available on request. (For contents of the toolkit, see supply web catalogue.)
6.Further information for comparable products, can be obtained from CPHHQ-SD-Cold Chain Unit < coldchainunit@unicef.org >.
