Generator set,diesel,air cooled,5kVA**

General Description:

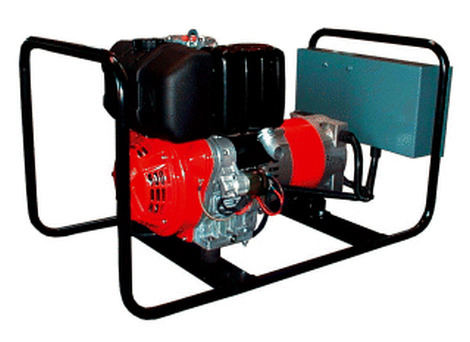

Diesel driven generator set, air cooled, and skid mounted, with an output of 5kVA at 1500rpm

Technical Specifications:
Small size, portable diesel engine driven generating set; mounted on a sturdy skid frame, with anti-vibration dampers, with four (4) lifting eyes
The generator has an output of 5kVA at 1500rpm, 220V, single-phase, 50Hz, with power factor of 1.0
The alternator is brushless, self excited, self regulated and single bearing type
The generator is powered by an air-cooled, direct injection, naturally aspirated diesel engine, with electric start and a "sealed-for-life" battery

The engine has a centrifugal governor and is fitted with safety devices such as low oil pressure (LOP) and high engine temperature (HET) cut off

The fuel tank has a capacity to allow 8 hours normal running, with a lockable fuel tank cap

The control panel is mounted on the generating set and includes two 220V, 16Amp, single phase European outlet sockets.
The control panel includes ammeter, voltmeter, circuit breaker, frequency meter, hour-run meter, start key, oil pressure and battery charger warning lights
Operator, maintenance, and spare parts manuals are included
The generating set is supplied with one set of fast moving spare parts for one year of operation

Transport and storage:
Dangerous goods: Yes. Hazardous Material – Transport Certification Required

Transport of generator as per Material Safety Data Sheet:
UN number: 3166
Danger class: 9
Packing instr.: 900
Proper shipping name: Engines, internal combustion

Transport of battery as per Material Safety Data Sheet:
UN number: 2794
Danger class: 8
Proper shipping name: Battery, wet, filled with acid.

Packaging: The set is packed in strong wooden box
Storage: Do not store unprotected from rain and sun
After extended storage period undergo maintenance before starting the engine

Instructions for use:
The set is used for power generating mainly for lighting
Regularly maintain the engine according to the manual (On the UNICEF SD Intranet a sample template is posted to assist with the maintenance of the engine)
See the generator maintenance sheet via the following link:
http://danaapps01.unicef.org/Denmark/DO/daniclguide.nsf/Pg/h0103

Precondition for utilisation:
Maintain a record sheet for the used hours
Prepare ventilated and covered room with noise reducer
Prepare the room with a covered outlet for the exhaust pipe

Alternative if the item is not available:
S0005389 Generator Set, Diesel, Water Cool, 5 KVA**
S0005869 Generator Set, Petrol, Skid Mounted, 5KVA **

Complementary Requirements to be ordered separately:
2 x 25 metres of power cable, 10 Amp, complete with socket and plugs.
2 x 25 metres of distribution cables, 3 cores on cable reel
1 x Distribution panel for outdoor use with stand
1 x Set of electrical plugs (one socket and one plug)
1 x Silent running canopy
Contingency stock of fuel (200l) – if drum or containers need to be sealed
In order to measure consumption, manual pump with counter is recommended, made out of anti-static material

Emergency scenarios
All type of emergencies

Context in which item is mainly used:
Vaccine preventable outbreak, for example measles, vaccination campaign, routine immunization. Do not overcharge the generator, and do not connect air-conditioning units to this generator
